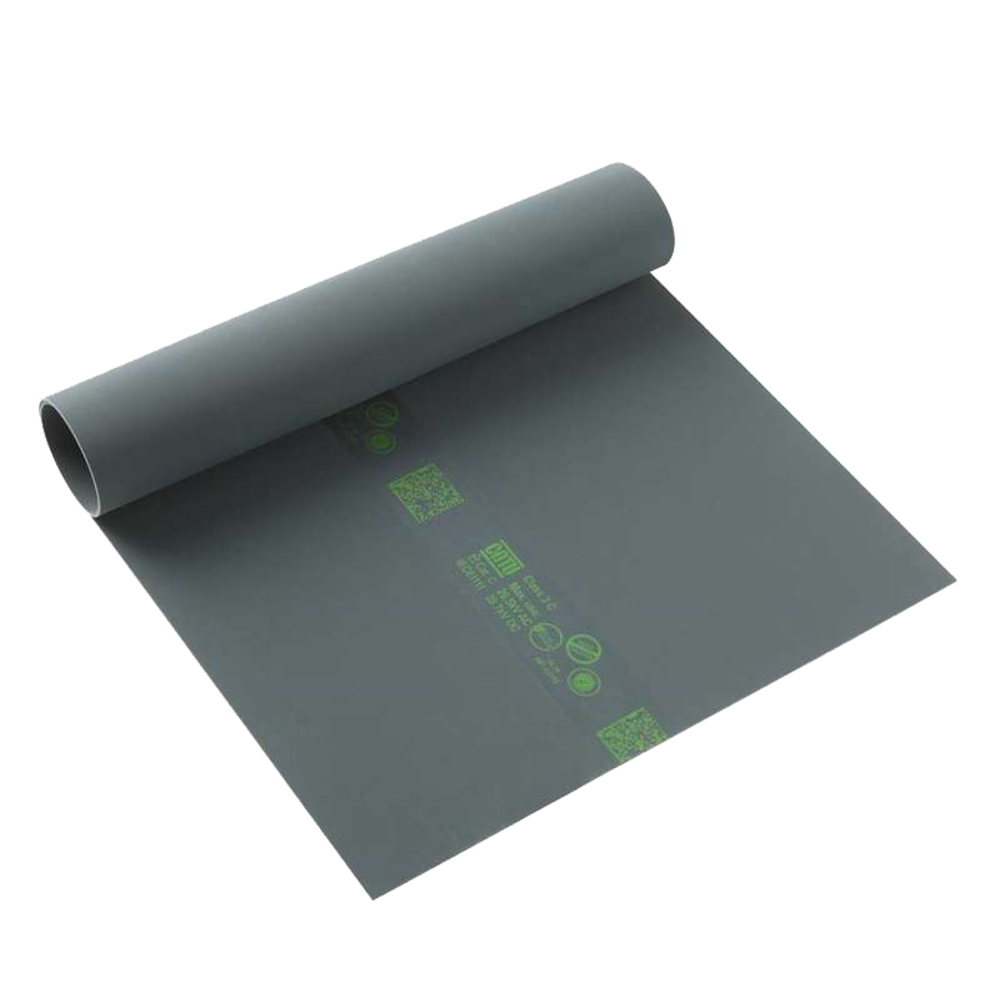

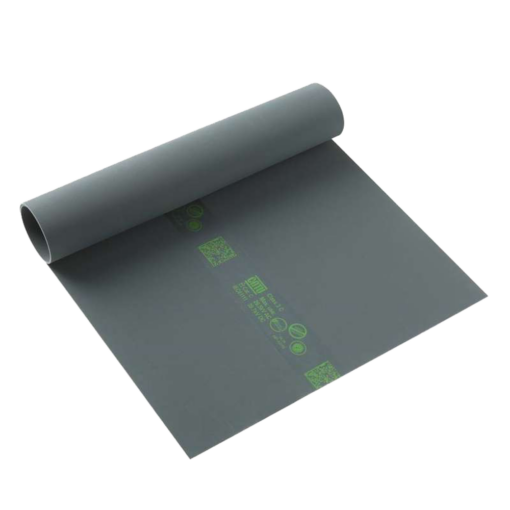

The CATU Insulating Mat Class 3 is designed to provide enhanced electrical insulation for operators working in high-voltage environments. Manufactured from high-quality halogen-free elastomer rubber, it isolates users from ground potential and protects against potentially life-threatening electrical currents.
Conforming to IEC 61111:2009, the mat meets Category C requirements, including extremely low temperature flexibility down to –40°C. It is suitable for both indoor and outdoor applications and is typically installed in front of electrical panels, switchgear, and high-voltage equipment to create a safe working area.
Key Features and Benefits
- Insulating mat for live and dead working.
- Class 3 – Maximum operating voltage: 26,500 V AC / 39,750 V DC.
- Conforms to IEC 61111:2009 standard.
- Category C compliant (–40°C folding test).
- Protects operators from ground potential.
- Suitable for indoor and outdoor installations.
- Flame retardant, puncture resistant, oil and acid resistant.
- Halogen-free elastomer material.
- RoHS2 compliant and REACH compliant (SVHC free).
- D barcode (Datamatrix) with direct access to user guide and technical sheet.
Rigorous IEC 61111:2009 Testing Includes
- Dielectric test
- Puncture resistance test
- Flame retardance test
- Acid resistance test
- Oil resistance test
- Ageing test
Recommended Applications
- High-voltage switchgear rooms
- Electrical substations
- Power generation facilities
- Industrial high-voltage installations
- Utility infrastructure
Industries
- Energy and utilities
- Power transmission and distribution
- Industrial manufacturing
- Infrastructure maintenance
Specifications
- Product type: Electrical insulating mat
- Class: 3
- Maximum operating voltage: 26,500 V AC / 39,750 V DC
- Standard: IEC 61111:2009
- Category: C (–40°C flexibility test)
- Material: Halogen-free elastomer
- Thickness: 3.2 mm ± 0.2 mm
- Storage temperature: +10°C to +21°C
- Operating temperature: –40°C to +55°C
- Compliance: RoHS2, REACH (SVHC free)
Model with Sizes (Width x Length)
- MP-42/66 (0.6 m x 0.6 m)
- MP-42/16 (0.6 m x 1.0 m)
- MP-60/03-5 (0.6 m x 5.0 m)
- MP-60/03-10 (0.6 m x 10.0 m)
- MP-42/11 (1.0 m x 1.0 m)
- MP-100/03-5 (1.0 m x 5.0 m)
- MP-100/03-10 (1.0 m x 10.0 m)
- MP-120/03-2 (1.2 m x 1.2 m)
- MP-120/03-10 (1.2 m x 10.0 m)
