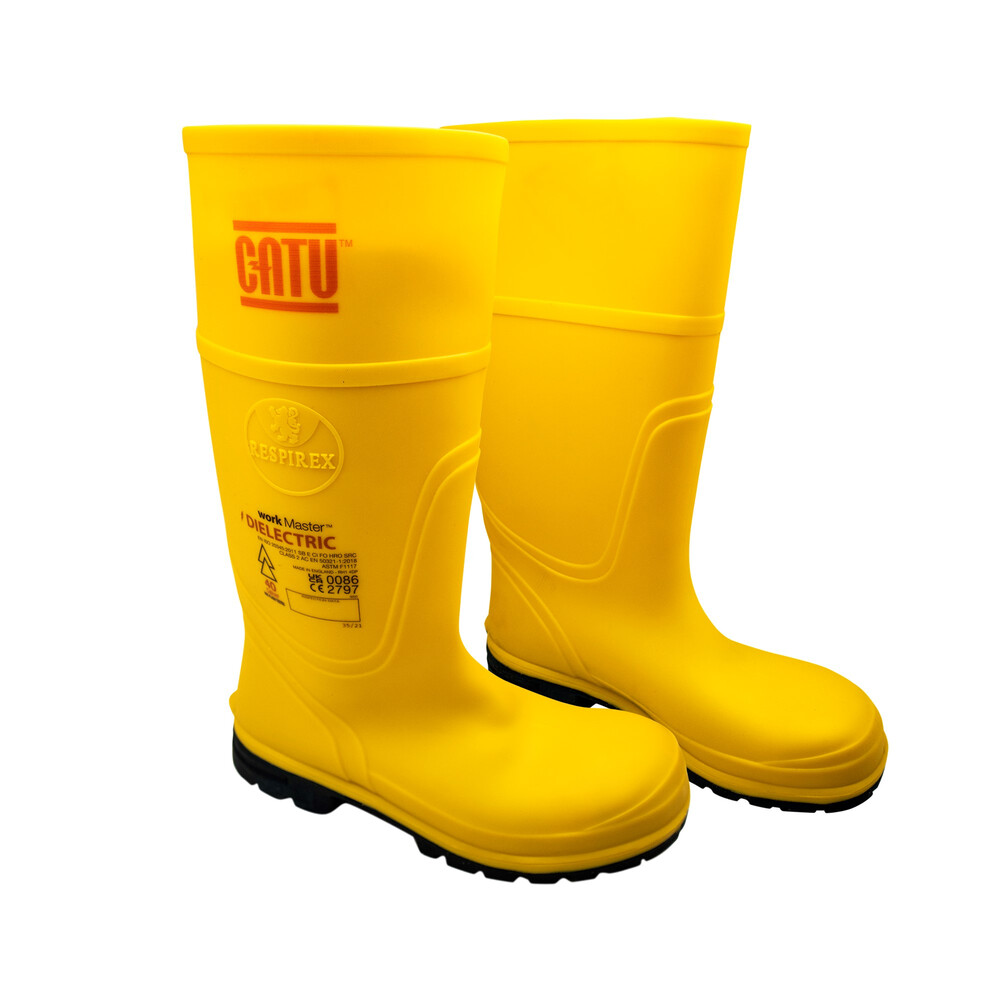

The CATU MV-137 Class 2 Insulating Boots provide reliable electrical protection for applications up to 17 kV, tested at 20 kV. These boots resist over 35 kV at the sole for 3 minutes and 20 kV over the entire boot for up to 8 hours. Designed for safe operation on live circuits, they also protect against step voltage while offering comfort and ergonomic use.
Key Features and Benefits
-
Electrical insulation class 2, rated for 17,000 V AC, tested at 20 kV.
-
Arc flash protection ATPV 40 cal/cm² per ASTM F2621:2019.
-
Protects against step voltage and electric shocks.
-
High visibility yellow for safety in work environments.
-
Comfort features: release tab for hands-free removal, adjustable upper height, and washable non-absorbent polyester lining.
-
Non-slip vulcanized rubber sole (SRC) compliant with SATRA TM144 and EN 13287.
-
Anti-slip and heat-resistant sole (300°C for 60 seconds).
-
Oil and petrol resistant sole.
-
Reinforced steel and epoxy coated toe protects up to 200 J.
-
Energy absorbing heel compliant with EN 345 SBE and EN ISO 20345 SBE.
-
100% waterproof with removable and washable insole.
-
Leakage current: <5 mA at 5 kV, <18 mA at 20 kV.
Recommended For
-
Electrical work up to 17 kV and tested for 20 kV environments.
-
Live line maintenance and high-voltage installations.
-
Arc flash risk-controlled areas requiring ATPV 40 cal/cm² protection.
-
Industrial, utility, and power generation applications.
Industries
-
Electrical utilities
-
Power generation
-
Industrial maintenance
-
Manufacturing facilities
-
Construction and energy sectors
Specifications
-
Model reference: MV-137
-
Electrical class: Class 2
-
Rated voltage: 17,000 V AC (tested 20 kV)
-
Arc flash protection: ATPV 40 cal/cm²
-
Colour: High visibility yellow
-
Sole: Non-slip, heat-resistant, oil and petrol resistant vulcanized rubber
-
Toe: Reinforced steel, epoxy coated (200 J)
-
Heel: Energy absorbing
-
Insole: Removable and washable
-
Waterproof: 100%
-
Standards: EN 50321-1:2018, ASTM 1117, ASTM 2413, ASTM F26121:2019, EN 13287, EN ISO 20345
Approvals
-
EN 50321-1:2018 Class 2
-
ASTM 1117, ASTM 2413, ASTM F26121:2019
-
EN 13287, EN ISO 20345
-
Arc flash ATPV 40 cal/cm²
