CATU Intervention Kit for Transformer Stations

The CATU Intervention Kit for transformer stations is designed to ensure safe intervention in high-voltage environments. It allows compliance with NF C13-100 and NF C13-200 standards, covering public HV distribution delivery stations (up to 33 kV) and high-voltage installations for industrial, tertiary, agricultural, and power generation sites. Each kit provides complete equipment for secure operations, including insulating gloves, rescue poles, and insulating stools or mats.

Key Features and Benefits

• Available for 20 kV and 36 kV stations with specific insulating stools or mats.

• Each kit requires a CL-465 series voltage detector for full operational readiness.

• High-quality insulating gloves CG-*-10-NR ensure hand protection during high-voltage operations.

• 45 kV rescue pole CS-45 with wall brackets CI-06-D enables safe intervention from a distance.

• Insulating stool CT-7-*/1 or class 3 insulating mat MP-42/16 provides stable and isolated support.

• Wall box CG-35/2 and fuse holder CI-23 ensure organized and accessible storage.

• Enhances safety, minimizes risk, and facilitates compliance with electrical safety regulations.

Recommended For

• HV transformer station maintenance and intervention.

• Power generation facility inspections.

• Industrial high-voltage electrical installations.

• Tertiary and agricultural site electrical operations.

Industries

• Energy and utilities

• Industrial manufacturing

• Agricultural facilities

• Commercial and tertiary sectors

• Electrical infrastructure maintenance

Specifications

• KIT-01: 20 kV stations with insulating stool. To be completed with a CL-465 series detector.

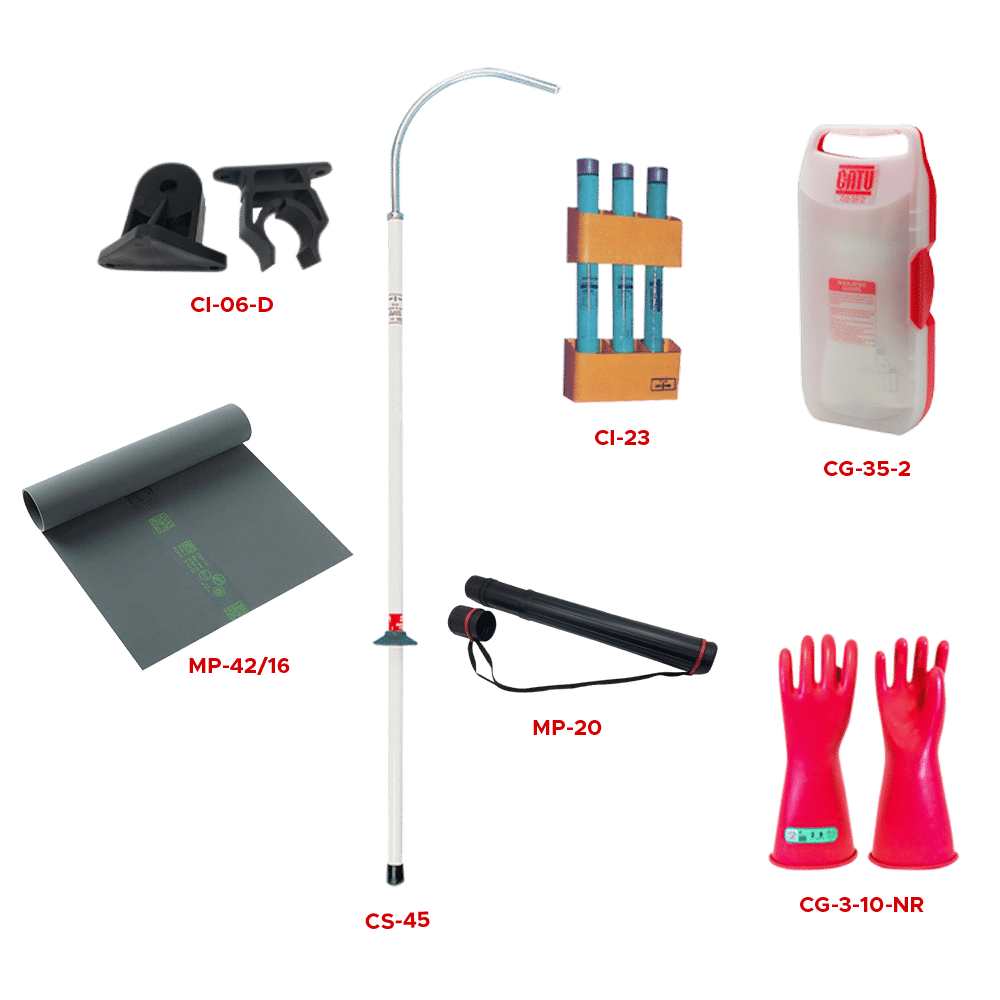

• KIT-10: 20 kV stations with insulating mat. To be completed with a CL-465 series detector.

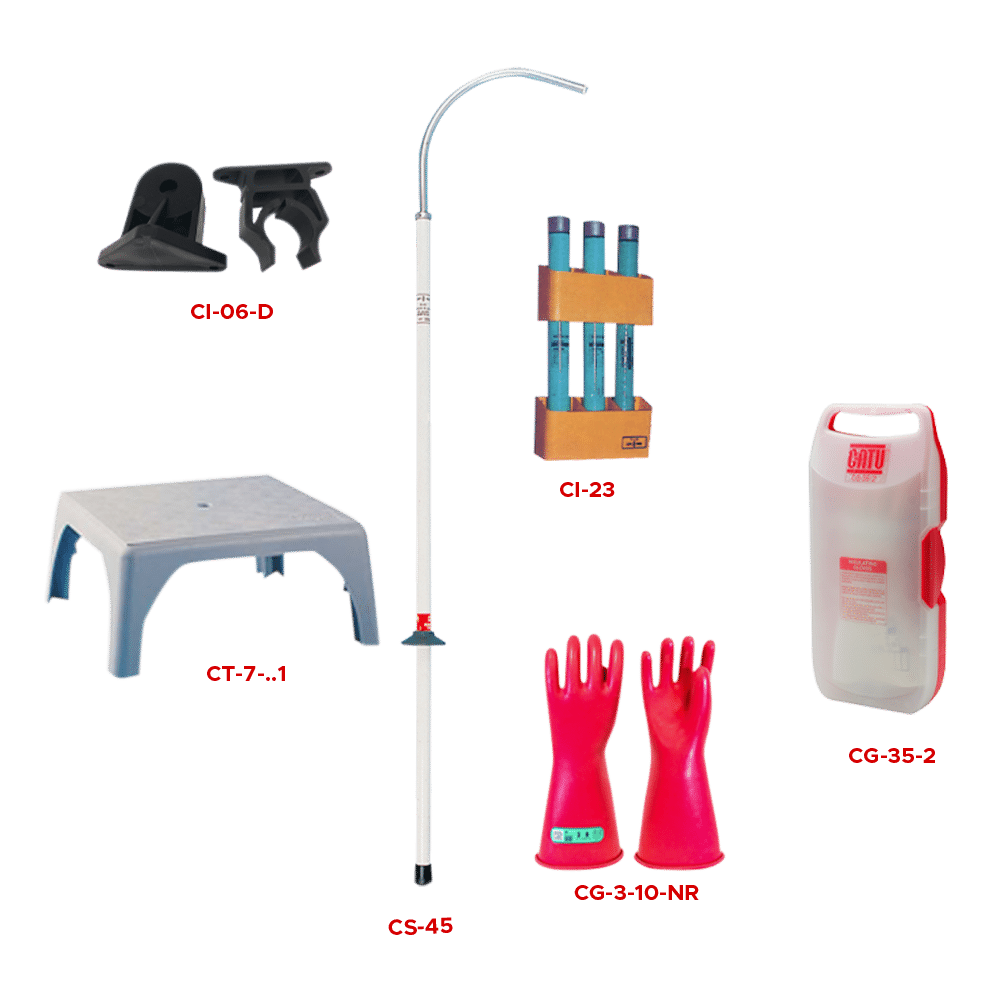

• KIT-02: 36 kV stations with insulating stool. To be completed with a CL-465 series detector.

• Insulating gloves: CG-*-10-NR

• Wall box for gloves: CG-35/2

• Fuse holder: CI-23

• Rescue pole: CS-45 with CI-06-D wall brackets

• Insulating stool: CT-7-*/1 or insulating mat: MP-42/16 with storage tube MP-20

Packaging

• Supplied as a complete intervention kit in a robust storage solution for easy transport and deployment.

Approvals

• Compliant with NF C13-100 and NF C13-200 standards.

• Meets applicable high-voltage safety regulations for public and industrial sites.
