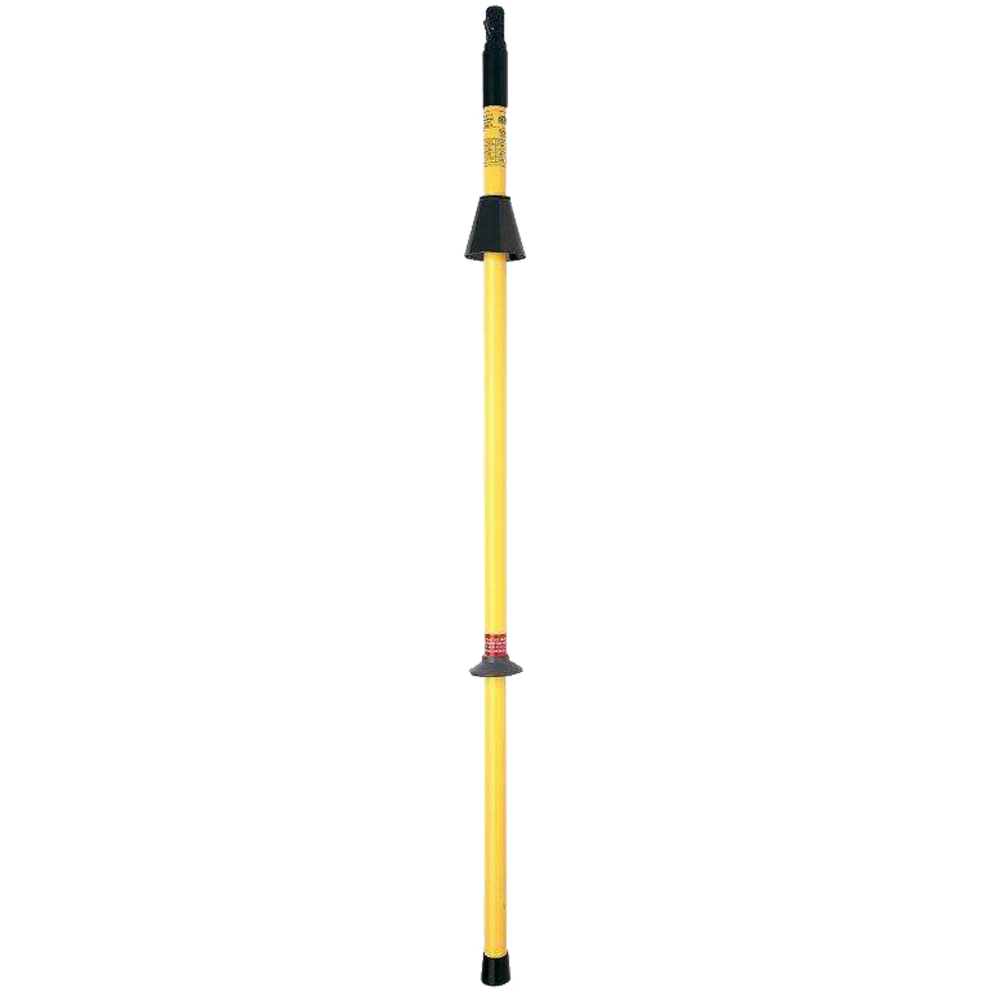

The CATU CF-5 Insulating Stick with Protective Apron is designed for safe earthing and short-circuiting operations in electrical substations. It supports outdoor use under wet conditions, as the integrated protective skirt limits moisture flow along the insulating tube. The durable construction ensures reliable insulation and controlled handling during electrical maintenance activities.
Key Features and Benefits
-
Designed for substation earthing and short-circuiting applications.
-
Protective insulating skirt improves safety during outdoor work in wet conditions.
-
Epoxy resin and glass fiber reinforced insulating tube ensures high dielectric strength.
-
Shock-resistant polycarbonate skirt enhances durability in harsh environments.
-
Standard insulating stick design ensures stable and controlled handling.
-
Wall-mounted bracket supports proper storage and easy accessibility.
Recommended For
-
Substation earthing and short-circuiting operations.
-
Outdoor electrical maintenance under wet conditions.
-
Electrical intervention in power transmission and distribution systems.
Industries
-
Electrical utilities
-
Power transmission and distribution
-
Energy and infrastructure
-
Industrial maintenance
-
Substation operation
Specifications
-
Model reference: CF-5
-
Product type: Insulating stick with protective apron
-
Material: Epoxy resin tube with glass fiber reinforcement
-
Protective skirt material: Polycarbonate
-
Skirt diameter: 100 mm
-
Skirt height: 90 mm
-
Operating environment: Outdoor use, including wet conditions
Composition
-
Insulating stick with protective apron
-
Wall bracket CI-10-D
Packaging
-
Supplied as one insulating stick with wall-mounted bracket.
Approvals
-
IEC 61235
CATU CF-5 Insulating Stick with Apron Selection Notes
The CATU CF-5 Insulating Stick with Apron is part of Safetyware’s electrical protection range for electricians, utilities, industrial maintenance teams, substations and facilities that need controlled protection against shock, arc flash, short-circuit or emergency rescue hazards. Review it against the actual task, voltage exposure, isolation status and site procedure before issue.
Where It Fits
| Selection area | Practical guidance |
|---|---|
| Product family | Insulating stick or rescue kit |
| Typical application | Electrical maintenance, switching, testing, isolation, substation work, panel service or emergency readiness. |
| Procurement note | Check voltage rating, reach length, rescue method, storage and emergency readiness. |
Standards and Safe Work Notes
Electrical protection should support a planned safe-work sequence: isolate where practical, lock out and tag out, verify absence of voltage, control stored energy, then use rated PPE and tools for the remaining risk. Local buyers should confirm datasheets, applicable EN/IEC/ASTM markings and DOSH/SIRIM KPD documentation where required.
Common Questions
Can this be used for live electrical work?
Only if the product rating, condition, procedure and user competency match the task. Electrical work should be de-energised and isolated whenever practical.
Can I request datasheets or matching accessories?
Yes. Contact Safetyware to compare ratings, sizes, compatible accessories or documentation for your site.
