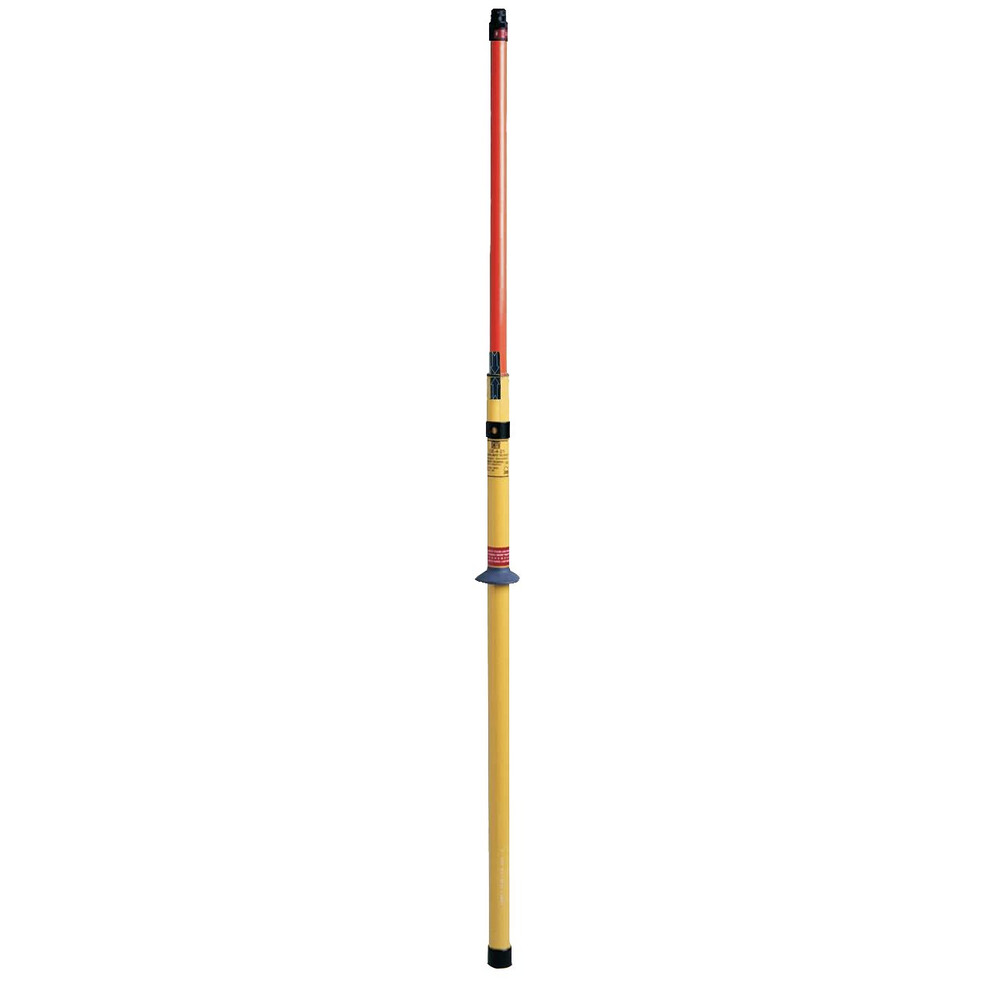

The CATU CE-4-21-C Telescopic Insulating Stick is designed for safe electrical operations in medium- and high-voltage environments. With an extended length of 2.1 meters and a maximum operating voltage of 90 kV, it supports voltage detection, earthing, short-circuiting, and switching tasks. The robust telescopic design ensures safe handling during indoor and outdoor use, including wet conditions.
Key Features and Benefits
-
Maximum operating voltage up to 90 kV for MV and HV applications.
-
Telescopic design extends to 2.1 m for increased working distance.
-
C-type end fitting with 12 mm hex connection supports multiple tools.
-
Epoxy resin and glass fiber reinforced insulating tube ensures high dielectric strength.
-
Foam-filled terminal tube improves insulation reliability.
-
Push-button locking system secures the stick in folded and extended positions.
-
Clear directional arrows simplify unfolding and folding operations.
-
Integrated hand guard enhances user safety during handling.
-
Suitable for indoor and outdoor use, including wet environments.
Recommended For
-
Voltage detection in MV and HV installations.
-
Earthing and short-circuiting operations.
-
Disconnecting and reconnecting electrical equipment.
-
Electrical maintenance in substations and power networks.
Industries
-
Electrical utilities
-
Power transmission and distribution
-
Industrial maintenance
-
Energy and infrastructure
-
Substation operation
Specifications
-
Model reference: CE-4-21-C
-
Product type: Telescopic insulating stick
-
Extended length: 2.1 m
-
Maximum voltage rating: 90 kV
-
End fitting: C type, hex 12 mm
-
Material: Epoxy resin tube with glass fiber reinforcement
-
Terminal tube: Foam-filled
-
Locking system: Push-button
-
Operating environment: Indoor and outdoor, including wet conditions
Packaging
-
Supplied as one telescopic insulating stick, individually packed.
Approvals
-
IEC 62193:2003
-
IEC 60855-1:2016
-
IEC 61235:1995
